How I Implemented a Lantern Lighting Effect in 10 Minutes

• 3 min read

This post was last updated Dec 30, 2015 and may be out of date

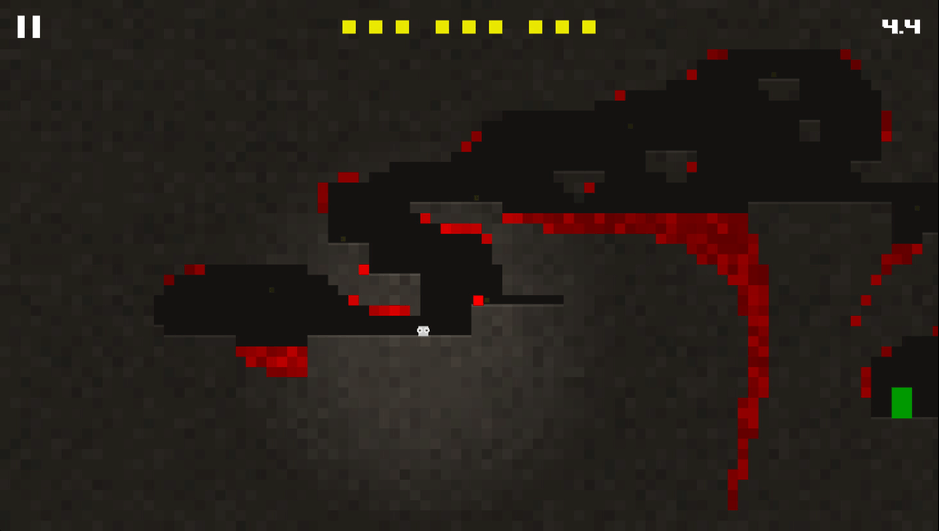

I am not an artist, so when I set out to make a game I needed to find other ways of making it look good. One of the things I did for my game Platform Pixels was add a lantern lighting effect. Here’s what it looks like (zoomed out for greater effect).

Platform Pixels Lantern Effect

This effect was actually very easy to implement in the game, so I felt like sharing exactly how it was done.

NOTE: the code shown is probably only relevant to my game engine, but the concept can be reused anywhere.

From Start to Finish

Every obstacle (level square) in Platform Pixels is treated separately and drawn separately. This led me to think, what if I darkened each block based on how far it was away from the player. That would be cool right? So that’s exactly what I did.

I knew what needed to be done. I needed to get the distance to the player and use that to generate a brightness ratio.

Here’s the Java code that uses the Pythagorean theorem to get the distance to the player.

// Get the distance from the player
float deltaX = Math.abs(player.x - o.x);
float deltaY = Math.abs(player.y - o.y);
float distance = (float) Math.sqrt(
        Math.pow(deltaX, 2) + Math.pow(deltaY, 2)
);

Now we can use that distance to calculate the brightness ratio.

// Calculate a brightness ratio from distance
float brightness = 1 - distance / MAX_RADIUS;

Ok that’s great, but it goes all the way to zero. We don’t want the outside to be completely dark, so I’ll set a minimum brightness using the clamp function from libGDX’s MathUtils library.

float clampedBrightness = MathUtils.clamp(
    brightness,
    MIN_BRIGHTNESS,  // 0.6
    MAX_BRIGHTNESS   // 1
)

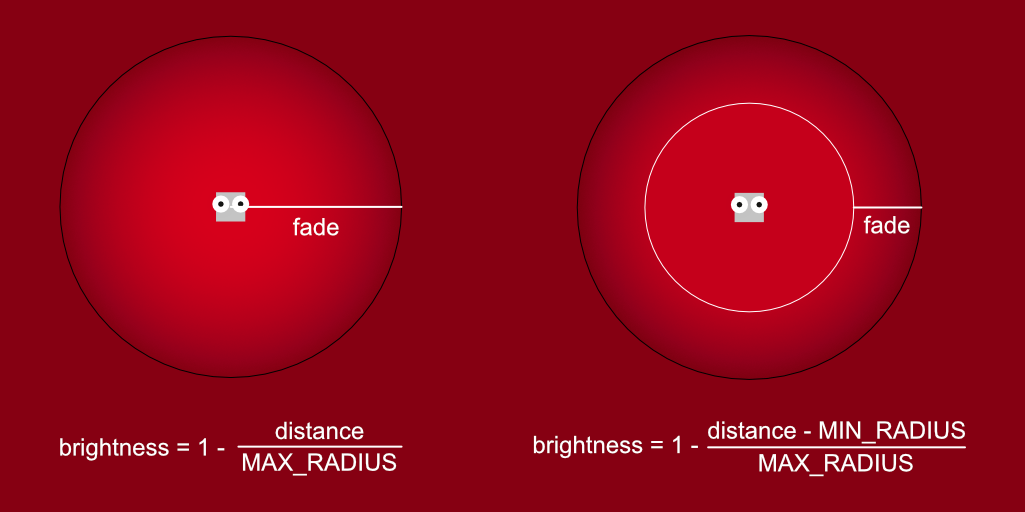

At this point, the effect works, but the transition is a bit too gradual. Let’s adjust the formula so that it doesn’t start the darkening transition right away. Here is an illustration of what I mean.

Platform Pixels Lantern Math

And here’s the updated code to adjust the fade.

// Calculate a brightness ratio from distance
float brightness = 1 - (distance - MIN_RADIUS) / MAX_RADIUS;

Now that we have a ratio we can use to adjust the brightness of each obstacle in the game. Let’s now go ahead and tie it all together.

/**
* Darken a given obstacle in the level based on how far it is from the player
*/
private void darkenObstacle (Obstacle o) {

    // Get the player object
    Player player = mLevel.getPlayer();

    // Calculate distance from player
    float deltaX = Math.abs(player.x - o.x);
    float deltaY = Math.abs(player.y - o.y);
    float distance = (float) Math.sqrt(
            Math.pow(deltaX, 2) + Math.pow(deltaY, 2)
    );

    // Calculate what the brightness should be (explained above)
    float brightness = 1 - (distance - MIN_RADIUS) / MAX_RADIUS;

    // Make sure the brightness doesn't go below a certain level
    float clampedBrightness = MathUtils.clamp(
            brightnessRatio,
            MIN_BRIGHTNESS, // 0.6F
            MAX_BRIGHTNESS  // 1F
    );

    // Actually draw the thing
    o.setDarkness(clampedBrightness);
    o.setBatchColor(mShapeBatch);
    o.draw(mShapeBatch);
}

Wrap Up

And that’s it! With a bit of simple math, we get a very stunning lighting effect. Here it is again one more time.

Platform Pixels Lantern Effect

Thanks for reading. I hope you enjoyed it!
